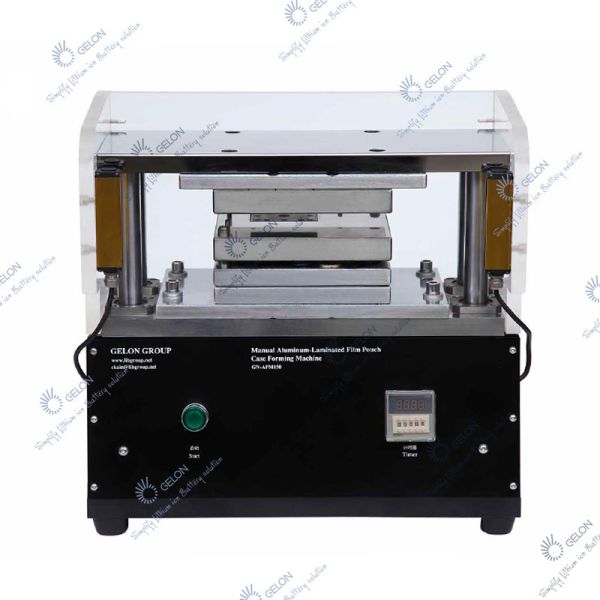

Battery Pouch Cell Battery Assembly

Name: Battery Pouch Cell Battery Assembly
Brand: Gelon
Price: 1 USD

Quality Battery Pouch Cell Battery Assembly for sale

Brand Name : Gelon

Certification : CE

Place of Origin : China

MOQ : 1set

Price : $1,800.00 - $3,500.00/ set

Payment Terms : T/T, L/C, D/P, D/A

Supply Ability : 1000set/month

Delivery Time : 10-15days

Packaging Details : Standard exported package : Internal anticollision protection, external export wooden box packaging.

Type : SEALING MACHINE

Applicable Industries : Energy & Mining, Lithium Ion Battery

Condition : New

Application : Battery industry

Automatic Grade : Semi-automatic

Weight : 55 KG

sealing side thickness : 0.15-0.3mm(according to al laminated film)

Applicable standard side sealing : ≤200mm (Bag containing)(can custom)

Lower mold temperature : standard 160℃-180℃(temp free control)

Compressed air : ≥5-8kg/cm2

Top sealing : ≤200mmBag containing)(can custom)

sealing head length : ≤200mm (can custom)

sealing time standard 2S-3S(0-99s adjust) : standard 2S-3S(0-99s adjust)

Contact Now

Gelon 2022 Newest R&D Pouch Cell Top and Side Heating Sealing Machine for Pouch Cell Battery Assembly

Product Description

Application: heating sealing for top and side sealing before electrolyte filling process

Working principle

It adopts thermal conductivity used on lithium battery packing materials(Aluminium-plastic film),heating it to make it jointing together.The resistance heating pipe transfer the heat source to sealing head(special made from Copper),then transfer it to aluminium-plastic film under press.The temperatrure can be adjusted and kept by thermocouple and thermostat.

Parameter

Name	Model/Spec	Name	Model/Spec
Suitable size	≤20020012MM	Dimension	450×300×400MM
Production capacity	600EA/H	Weight	37KG
degree of parallelism of sealing head	±0.01mm	Input power supply	AC220V 50HZ
Sealing width	8MM	Power	1.0KW
Temperature error	±2°C	Input air source	0.6Mpa
Compressed air pipe diameter	Φ8MM	RH	20~90%RH
suitable thickness of aluminium film	0.1-0.3MM	Current temperature	10~35°C
Sealing method	Soft sealing
